Oct. 18, 2024

BENEFITS OF MICROWAVE DRYING

PART 2 – IMPACTS OF CONVECTION AND MICROWAVE DRYING ON OPERATIONS

In part one of our series comparing convection and microwave drying we examined how slower drying processes, like convection drying, can negatively impact product quality. While faster drying processes, like microwave drying, minimize the impact of drying on product quality.

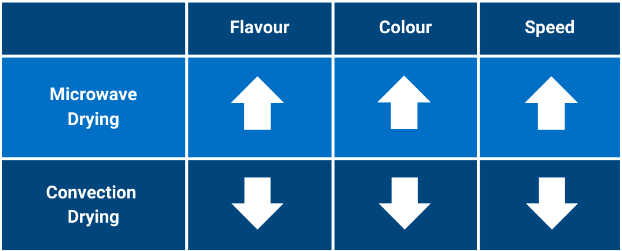

Visual Summary of Part 1 of our series comparing flavour, colour, and speed between convection and microwave drying.

In part two, we discuss convection and microwave drying operations, specifically the differences in footprint, energy efficiency, and operational flexibility between these two drying methods.

FOOTPRINT

Industrial convection drying generally requires long drying chambers to balance heating the product evenly without burning, and adequate time for water evaporation. In addition to the chamber, it requires an external heat source (like gas burners, electric elements, or steam), and air handling systems for infeed and exhaust air (which scale with chamber size). Microwaves’ highly efficient energy transfer allows for a smaller chamber size and overall dryer dimensions. As a result, microwave systems require minimal air handling and a generator to produce electromagnetic waves for drying.

ENERGY EFFICIENCY

Microwave drying uses energy more efficiently than convection drying because microwaves selectively interact with polar molecules in the material, like water, to generate heat. This selective process increases internal vapor pressure without wasting energy heating the entire material. In contrast convection drying heats from the outside inwards, requiring hot air or steam, which often results in significant energy wastage as not all heat generated for drying is transferred to the product. This wasted energy (heat) is either transferred to the metal in the chamber or exits the system with the exhaust air.

PRODUCTION FLEXIBILITY

Convection and microwave drying operations can include multiple drying stages for production flexibility. Each of these stages can have different processing conditions, tailored and optimized based on the phase of moisture removal. Since microwaves can be instantly turned on or off, energy can be instantly applied to or removed from the products to prevent burning – while convection drying cannot quickly change or remove the energy (heat) being applied.

CONCLUSION

Both drying techniques have clear benefits and can each be optimized for different applications. Convection drying is great for applications that benefit from long processing time or low energy efficiency. While microwave drying is ideal for heat-sensitive products and situations where energy efficiency is important. Ultimately, the choice between the two often depends on operational requirements, business goals, and the nature of the product.
